This introduction showcases the significance of Type L copper wall thickness in piping installations throughout the U.S.. Industry pros including contractors, engineers, and procurement managers depend on exact copper pipe specifications. This information is crucial for pipe sizing, calculating pressures, and ensuring durable installations. This article uses primary data from ASTM B88 and Taylor Walraven to assist with choosing the appropriate plumbing materials and fittings.
Best Website To Purchase 3 4 X 20 Copper Pipe
Type L copper pipe provides a middle ground between durability and price, making it ideal for diverse water supply and mechanical setups. Understanding the nuances of metal wall thickness, nominal and actual dimensions, and how they affect internal diameter is essential. This understanding enables teams to choose the best copper tubes for home and business projects alike. The article also references applicable standards, such as EN 1057 and ASTM B88, along with related ASTM specifications like B280 and B302.
Key Takeaways
- Type L copper wall thickness is a popular selection for plumbing thanks to its mix of strength and economy.
- Primary sources like ASTM B88 and Taylor Walraven provide the dimensional and weight data required for accurate pipe sizing.
- Pipe wall thickness influences inside diameter, pressure capacity, and flow performance.
- Purchasing should factor market prices, material temper, and vendor choices like Installation Parts Supply.
- Knowledge of standards (EN 1057, ASTM B88) and related specs (B280, B302) ensures code-compliant installations.
Understanding Different Copper Pipes And Type L Usage
Copper tubing is grouped into various grades, every one having its own wall thickness, price point, and application. Contractors depend on ASTM codes and EN 1057 when choosing piping for jobs.
K L M DWV comparison highlights where Type L fits in. Type K, with its thick walls, is ideal for buried lines and high-stress areas. Type L copper, with a medium wall, is the go-to for interior water distribution. Type M is thinner, suitable for budget projects with lower stress requirements. DWV is for non-pressurized systems and must not handle potable water.
This part describes the typical applications and reasoning behind choosing Type L. For many projects, the thickness of Type L offers a compromise between pressure ratings and thermal durability. It’s suitable for branch lines, hot water lines, and HVAC due to its toughness and manageable weight. This type is usable with various fittings and comes in drawn and annealed tempers.
Codes determine the dimensions and tolerances of copper tubes. ASTM Standard B88 is key for imperial sizes, defining Types K, L, and M. EN 1057 is the EU standard for plumbing and heating. Additional ASTM specs cover other applications in the piping trade.
A concise comparison table is provided for easy checking. For precise measurements, refer to the B88 standard and vendor sheets such as Taylor Walraven.
| Type | Wall Characteristic | Typical Applications | Pressurized Service |
|---|---|---|---|
| Type K | Heavy wall; max protection | Buried lines, water mains, fire systems, solar, HVAC | Allowed |
| Grade L | Medium wall; balanced strength and cost | Indoor water, branches, hot water, commercial plumbing | Allowed |
| Type M | Light wall; economical | Residential indoor, light commercial | Yes, lower pressure margin |
| Drain Waste Vent | Nonpressurized drainage profile | Drain, waste, vent; not for potable pressurized water | No |
Local codes and job specs must match with ASTM rules and EN 1057. Verify fitment with connectors and joinery prior to choosing your choice of plumbing material.

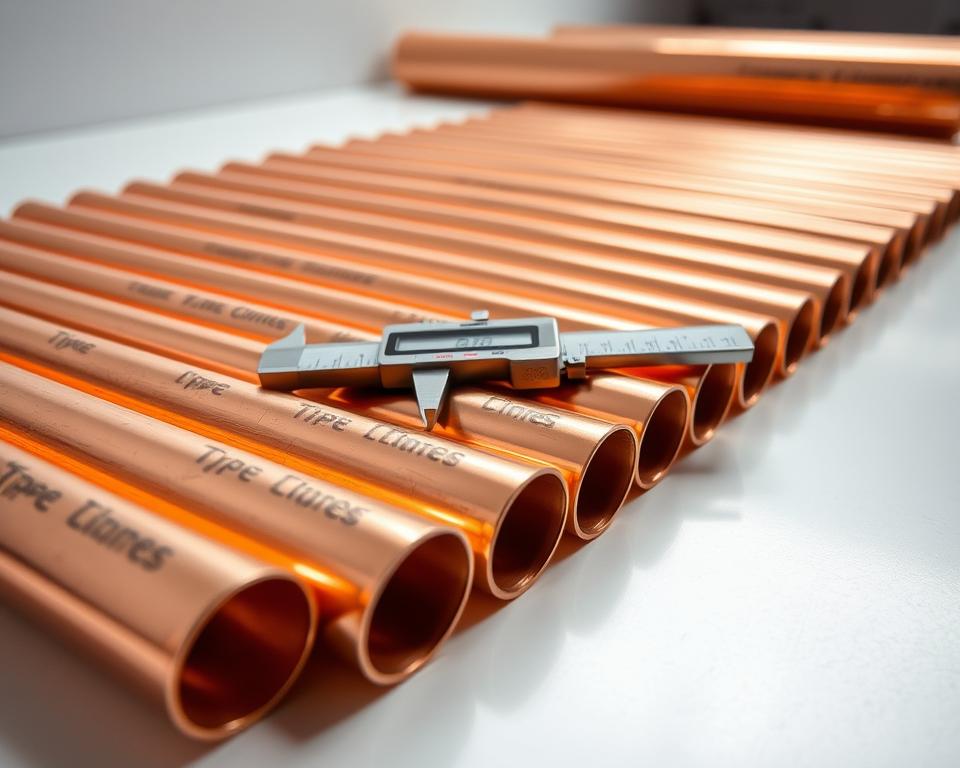

Details On Type L Copper Tubing Thickness
The thickness of Type L walls is critical to a tube’s durability, pressure rating, and flow capacity. This section reviews ASTM B88 nominal values, lists popular sizes with their wall thickness, and explains how outside diameter (OD) and inside diameter (ID) impact pipe sizing.
ASTM B88 nominal tables detail standard outside diameters and wall thickness for Type L. These values are essential for designers and installers when selecting pipes and connectors from makers like Mueller Streamline and Taylor Walraven.
Summary Table Of ASTM B88 Nominal Wall Thickness For Type L
The table beneath displays standard nominal dimensions, their Type L wall thickness, and weight per foot. These figures are standard for pressure ratings and material takeoffs.
| Nominal Size | OD | Wall Thickness | Weight (lb/ft) |
|---|---|---|---|
| 1/4″ | 0.375″ | 0.030″ | 0.126 |
| 3/8″ | 0.500″ | 0.035″ | 0.198 |
| 1/2″ | 0.625″ | 0.040″ | 0.285 |
| 5/8″ | 0.750″ | 0.042″ | 0.362 |
| 3/4″ | 0.875″ | 0.045″ | 0.455 |
| 1″ | 1.125″ | 0.050″ | 0.655 |
| 1-1/4″ | 1.375″ | 0.055″ | 0.884 |
| 1-1/2″ | 1.625″ | 0.060″ | 1.14 |
| 2″ | 2.125″ | 0.070″ | 1.75 |
| 2-1/2″ | 2.625″ | 0.080″ | 2.48 |
| 3″ | 3.125″ | 0.090″ | 3.33 |
| 3-1/2″ | 3.625″ | 0.100″ | 4.29 |
| 4″ | 4.125″ | 0.110″ | 5.38 |
| 5″ | 5.125″ | 0.125″ | 7.61 |
| 6″ | 6.125″ | 0.140″ | 10.20 |
| 8″ | 8.125″ | 0.200″ | 19.28 |
| 10″ | 10.125″ | 0.250″ | 31.10 |
| 12″ | 12.125″ | 0.280″ | 40.40 |
Common Nominal Sizes And Corresponding Wall Thickness
Fast reference numbers are necessary on job sites. For example, a 1/2-inch pipe has a Type L wall of 0.040″. A 1-inch pipe has a 0.050″ wall. Bigger pipes feature 3-inch at 0.090 and 8″ at 0.200″. These figures help estimate material cost when comparing 1/2 inch copper prices or bigger sizes.
How OD, ID And Wall Thickness Influence Internal Diameter
Nominal size is a designation, rather than the real external diameter. ASTM B88 nominal tables list OD values. In most cases, the outside diameter is approximately 1/8 inch bigger than the nominal label.
Inside diameter is OD less twice the wall gauge. Thicker walls decreases internal diameter and flow capacity. This difference impacts friction loss, pump selection, and fittings compatibility.
Installers perform sizing math using OD and wall specs from ASTM B88 nominal tables or manufacturer tables. Precise ID numbers ensure proper choice of plugs, pressure tests, and system components for a given system.
Chart Highlights For Type L Copper Pipe Dimensions
This brief highlights important figures for Type L pipe to assist in sizing, fitting selection, and material takeoff. The table below shows selected nominal sizes with outside diameter, wall thickness, and linear weight. Reference these figures to verify fit with connections and to plan for transport needs for large copper tube runs.
Read the following rows by nominal size, then verify the OD and thickness to calculate the ID. Observe the heavier weights for bigger pipes, which impact logistics and install plans for products like an 8 copper pipe.
| Size | OD | Wall Thick. | Inside Diameter (ID) | Weight per Foot |
|---|---|---|---|---|
| 1/4″ | 0.375″ | 0.030″ | 0.315″ | 0.126 lb/ft |
| 3/8″ | 0.500″ | 0.035″ | 0.430″ | 0.198 lb/ft |
| 1/2″ | 0.625″ | 0.040″ | 0.545″ | 0.285 lb/ft |
| 3/4″ | 0.875″ | 0.045″ | 0.785″ | 0.455 lb/ft |
| 1″ | 1.125″ | 0.050″ | 1.025″ | 0.655 lb/ft |
| 2″ | 2.125″ | 0.070″ | 1.985″ | 1.75 lb/ft |
| 3″ | 3.125″ | 0.090″ | 2.945″ | 3.33 lb/ft |
| 6″ | 6.125″ | 0.140″ | 5.845″ | 10.20 lb/ft |
| 8″ | 8.125″ | 0.200″ | 7.725″ | 19.28 lb/ft |
| 10″ | 10.125″ | 0.250″ | 9.625″ | 31.10 lb/ft |
| 12″ | 12.125″ | 0.280″ | 11.565″ | 40.40 lb/ft |
Large copper tube sizes such as 6 through 12 inches exhibit significantly greater weight. Plan for heavier lifts, bigger hangers, and different jointing techniques when specifying these runs. Installers who offer piping services must account for rigging and transport at the jobsite.
To interpret the chart: start with the nominal dimension, check the listed OD, then note the type l copper wall thickness to find the ID by subtracting twice the wall from the outside diameter. Refer to the weight column for takeoffs and structural load checks. For choosing plugs and hydro testing, verify dimensions against manufacturer plug charts and pressure tables.
Performance Factors: Pressure, Temp, And Flow Rates
Understanding pipe capability involves weighing durability, thermal limits, and hydraulic flow. In the plumbing industry, designers utilize pressure tables and hydraulic guides to select the correct pipe grade. They have to factor in mechanical demands and flow targets for each run when selecting Type L.
Comparing Working Pressures Of K, L And M Copper Pipes
ASTM B88 tables outline working pressure trends for different sizes and wall thicknesses. Type K has the max pressure rating, followed by Type L, and finally Type M. It’s essential for designers to verify the specific rating for the selected size and hardness before finalizing a design.
Impact Of Wall Thickness On Pressure Limits And Safety
Type l copper wall thickness determines the max safe pressure. Heavier walls increase burst pressure and stress limits, giving a greater safety margin versus mechanical damage or thermal cycling. The thickness also influences the bend radius and may influence the decision between hard or soft copper for specific connections.
Water Velocity, Flow Capacity, And Pressure Loss Relative To Size
Increasing wall thickness reduces the internal diameter, lowering the capacity. This decrease results in higher velocities at the same flow rate, raising friction losses per foot. When calculating pipe sizes, figure the ID from the OD minus twice the wall thickness to accurately determine Reynolds number and friction factor.
| Nominal Size | Wall (K/L/M) | Approx. ID (in) | Rel. Pressure | Loss Factor |
|---|---|---|---|---|
| 1/2″ | 0.049 / 0.040 / 0.028 | 0.546 / 0.628 / 0.740 | K > L > M | Smaller ID = more friction |
| 1″ | 0.065 / 0.050 / 0.035 | 1.030 / 1.135 / 1.250 | K > L > M | Thicker wall cuts flow area, boosts loss |
| 3″ | 0.120 / 0.090 / 0.065 | 2.760 / 2.900 / 3.030 | K > L > M | Pressure drop differences grow with higher flow rates |
Use friction loss charts for copper or run a hydraulic calculation for every loop. Designers must verify velocity limits to prevent erosion-corrosion and noise. Temperature derating is needed where solder joints may lose pressure capacity at higher operating temperatures.
Practical pipe sizing combines pressure limits, type l copper wall thickness, and expected flow. The plumbing industry standard practice is to check ASTM data and code restrictions, then validate pump curves and friction losses to reach a reliable system.
Requirements For Specifications And ASTM Standards In Copper Tubing
Understanding the governing standards for copper tubing is essential for following specs. Project drawings and POs often reference ASTM and EN codes. These documents define sizes, limits, and hardness. Specifiers rely on them to guarantee the materials and methods match the intended application.
Standard B88 is the baseline for potable water tubes in the U.S.. It specifies nominal sizes, outside diameters, wall thickness, tolerances, and weights for Types K, L, and M. The spec also specifies soft and hard tempers and compatibility with various fittings.
ASTM B280 controls ACR tubing for cooling systems, with specific pressure limits and dimensional controls versus B88. B302 and B306 cover threadless and DWV copper products for mechanical/waste systems. EN 1057 provides metric sizes, catering to EU jobs and those requiring metric tolerances.
Temper greatly affects field work. Annealed tube is softer, making it easier to bend in the field. It works well for flared and many compression fittings after end preparation. In contrast, drawn tube is harder, resisting denting, and is better with sweat fittings and for straight runs.
Dimensional tolerance is a key issue. ASTM tables list OD tolerances ranging from ±0.002″ to ±0.005″ depending on size. A exact OD is crucial for good joints. Specifying the tolerance band in procurement can prevent field assembly issues.
Suppliers such as Petersen and Taylor Walraven provide I.D., OD, and wall charts. These resources help with selecting plugs and estimating weights. Using these charts with standards ensures a match between material and fittings. This method reduces errors during copper pipe field services and streamlines procurement.
| Code | Primary Scope | Relevance to Type L |
|---|---|---|
| ASTM B88 | Water tube specs: size, wall, tolerance, weight | Sets Type L specs and use |
| B280 | Copper tube for ACR; pressure ratings and dimensions | Used when copper serves HVAC refrigeration systems |
| B302/B306 | Threadless tube and DWV dimensions and properties | Relevant for non-pressurized or special drainage uses |
| EN 1057 | Seamless copper tubes for water and gas in metric sizes | Metric specs for global jobs |
Project specifications must state the required ASTM standards, allowed tempers, and OD tolerance class. This info prevents mismatches at installation and ensures system performance under pressure and during testing.
Unique uses might require additional controls. Med-gas and industrial lines require specific standards and restrictions. Municipal rules may limit copper use for gas lines in some U.S. jurisdictions because of embrittlement risks. Always verify authorities having jurisdiction before deciding.
Pricing Examples And Wholesale Sourcing For Copper Tubing
Pricing for Type L copper tubing fluctuates based on the copper market, manufacturing costs, and supply-chain factors. Buyers need to watch spot copper and mill premiums when planning budgets. For short runs, retailers price per foot. For bulk jobs, wholesalers offer reels or straight lengths with volume discounts.
Before buying, check current quotes for 1/2″ pipe cost and 3 inch copper pipe price. Small 1/2″ L pipe often appears as coil or stick and is priced per foot or per coil. Three-inch Type L carries a higher price per foot due to mass and manufacturing effort.
Price factors to watch
Commodity copper swings, mill lead times, and temper selection (annealed vs drawn) are main cost factors. Drawn, hard temper might be pricier than annealed tube. Coil versus straight lengths affect handling and shipping charges. Request B88 certs and temper details on every bid.
Costs for big pipes
Big pipe sizes increase costs rapidly. An 8 copper pipe is much heavier than small sizes. That extra weight increases freight costs and requires heavier supports at the site. Fabrication for large runs, special fittings, and heat treating add to the total cost.
| Size | Pricing Method | Key Cost Drivers |
|---|---|---|
| 1/2″ Type L | By foot/coil | Handling, production, copper spot price |
| 3 in Type L | Per linear foot | Material weight, fabrication, special fittings |
| 6-10 in Pipe | Per linear foot with freight add-on | Weight, shipping, supports, annealing |
Wholesale sourcing and distributor note
For bulk buying, use major wholesalers. Installation Parts Supply stocks Type L and other grades and can provide lead-time estimates, volume pricing, and certs. Procurement teams must check dimensions and confirm delivery format—coil or straight—to match field requirements.
When bidding, request detailed quotes that separates raw-material cost, fabrication, and freight. This detail aids comparison for the same pipe grade and avoids surprises later on.
Installation, Joining Methods, And Field Services
Type L copper requires precise handling during installation. The proper prep, flux, and solder alloy are essential for lasting joints. Hard temper is best for sweat solder, while annealed tube is preferred for bending and flare fittings.
Sweat solder, compression fittings, and flares each have specific applications. Sweating creates low-profile, permanent connections for potable water, adhering to codes. Compression are good for fast work in tight spaces and for repairs. Flare fittings are ideal for soft copper and gas/AC lines, providing leak-tight connections.
Install crews must follow a strict plan for testing and safety. Plugs need to fit the tube dimensions and account for wall gauge. Check maker data for safe test pressures. Record test data and inspect joints for solder coverage and proper seating of compression ferrules.
Hanger spacing is critical for durability. Follow spacing rules based on size to prevent sagging. Bigger pipes and heavier lengths need more support. Anchor points and expansion allowances prevent stress on fittings.
Thermal expansion needs planning on long lines and heating loops. Install loops, guides, or slides for temperature changes. Copper’s thermal expansion coefficient is significant in solar and hot-water systems.
Common installation pitfalls include confusing specs. Confusing nominal size with actual OD can lead to mismatched parts. Using Type M in high-pressure jobs can lower safety. Check tolerances with standards before assembly.
Plumbing codes set use limits and material rules. Check local municipal codes for potable water, medical gas, and fire protection work. Some areas limit copper for natural gas; adhere to ASTM on cracking risks.
Moving big pipes requires equipment and care during moving. Heavy sections like 8″ or 10″ require rigging plans, slings, and careful support to prevent damage that ruin fittings.
Use standard logs and education for copper pipe field services teams. This reduces rework, boosts pass rates, and keeps jobs on time in construction.
Summary
The wall thickness of Type L copper offers a compromise for diverse plumbing and HVAC projects. It has a standard wall, better than Type M in pressure capacity. However, it costs less and lighter than Type K. This makes it a flexible option for drinking water, hydronic, and HVAC applications.
Always consult B88 standards and manufacturer charts, like Taylor Walraven, for specs. These documents detail dimensions and weights. Meeting these specs is crucial for correct hydraulic calculations and fitting match. This includes sweat, compression, and flare joining methods.
When budgeting, watch material costs. Look at wholesalers like Installation Parts Supply for availability and compliance certificates. Don’t forget pressures, temps, supports, and codes. This assists in creating systems that are long-lasting and code-compliant.
